Wi-Fi functionality allows for two scenarios:
- In Access Point mode, any device with a wireless card can access the Sevio Router's LAN (automation network).
- In Client mode the Sevio Router connects directly to a Wi-Fi network at the installation site for internet access. A mobile hotspot on a smartphone can also provide this connection. For further details, please refer to the Wi-Fi Client article.

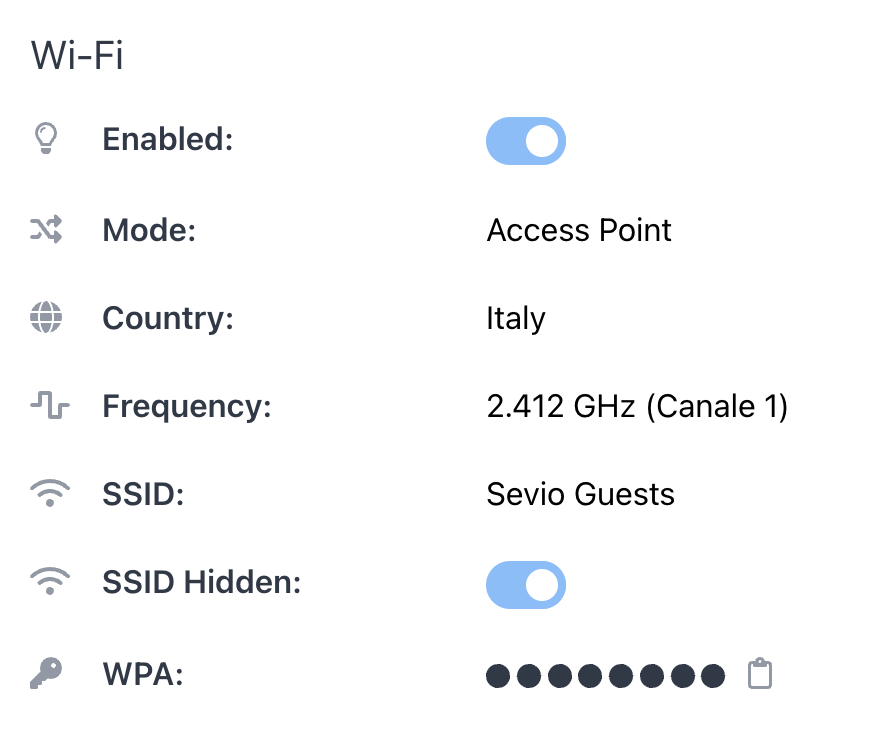

In Access Point mode, configure the network parameters in the LAN Panel.
Enabled
This button enables and disables the Wi-Fi interface.
Mode
Select Wi-Fi Client or Access Point mode.
For further details, please refer to the Wi-Fi Client article.
For further details, please refer to the Wi-Fi Client article.
Country
The Router's regional configuration ensures compliance with Wi-Fi radio frequency regulations.
Frequency
This parameter indicates the radio channel used for data transmission.
SSID
The SSID (Service Set Identifier) parameter identifies the Wi-Fi network name generated by the Sevio Router, which allows authenticated wireless access to the LAN.
SSID Hidden
The system provides a function to hide the SSID, making the wireless network invisible to both the Router and other Devices.
WPA
WPA2 or WPA password used for the Wi-Fi connection.
Passwords must meet the following requirements:
- Between 8 and 16 characters.
- An uppercase (A-Z) and a lowercase (a-z) letter.
- A digit (0-9).
- A special character (e.g., @, !, ?).
Enabled
This button enables and disables the Wi-Fi interface.
Mode
Select Wi-Fi Client or Access Point mode.
For further details, please refer to the Wi-Fi Client article.
For further details, please refer to the Wi-Fi Client article.
Country
The Router's regional configuration ensures compliance with Wi-Fi radio frequency regulations.
Frequency
This parameter indicates the radio channel used for data transmission.
In Auto mode, the Sevio Router automatically matches its receiving frequency to the connected Access Point.
SSID
The SSID (Service Set Identifier) parameter identifies the Wi-Fi network name generated by the Sevio Router, which allows authenticated wireless access to the LAN.
WPA
WPA2 or WPA password used for the Wi-Fi connection.
Passwords must meet the following requirements:
- Between 8 and 16 characters.
- An uppercase (A-Z) and a lowercase (a-z) letter.
- A digit (0-9).
- A special character (e.g., @, !, ?).
Characters Not Accepted by Wi-Fi Access Point
Wi-Fi Access Point mode does not support non-ASCII characters:
| Accented characters | Á, é, ü, ñ, ç, etc. |
| Special symbols | €, ©, ®, ™, etc. |
| Extended punctuation | « », “ ”, –, —, etc. |
| Advanced mathematical symbols | ∑, ∞, √, ≠, etc. |
| Non-Latin characters | Кириллица (Cyrillic), العربية (Arabic), 中文 (Chinese), etc. |
| Emojis and graphic symbols | ☺, ☻ , etc. |
| Non-visible spacing and punctuation | Non-breaking space (\xA0), thin space, em space, etc. |
| Technical and graphical symbols | ⌂, ░, ▒, ▓, etc. |
