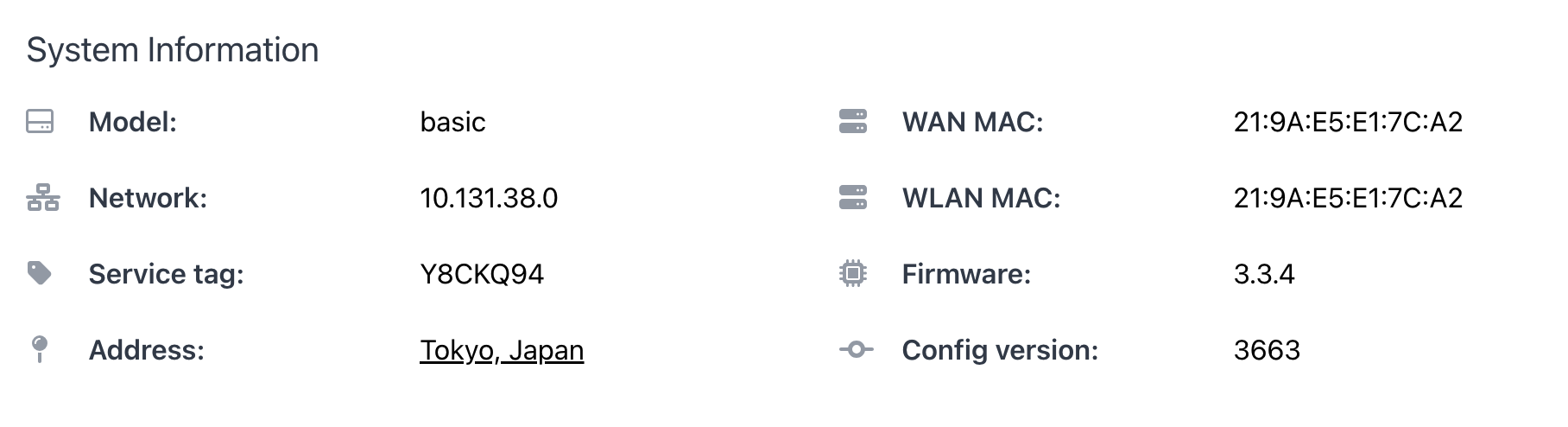

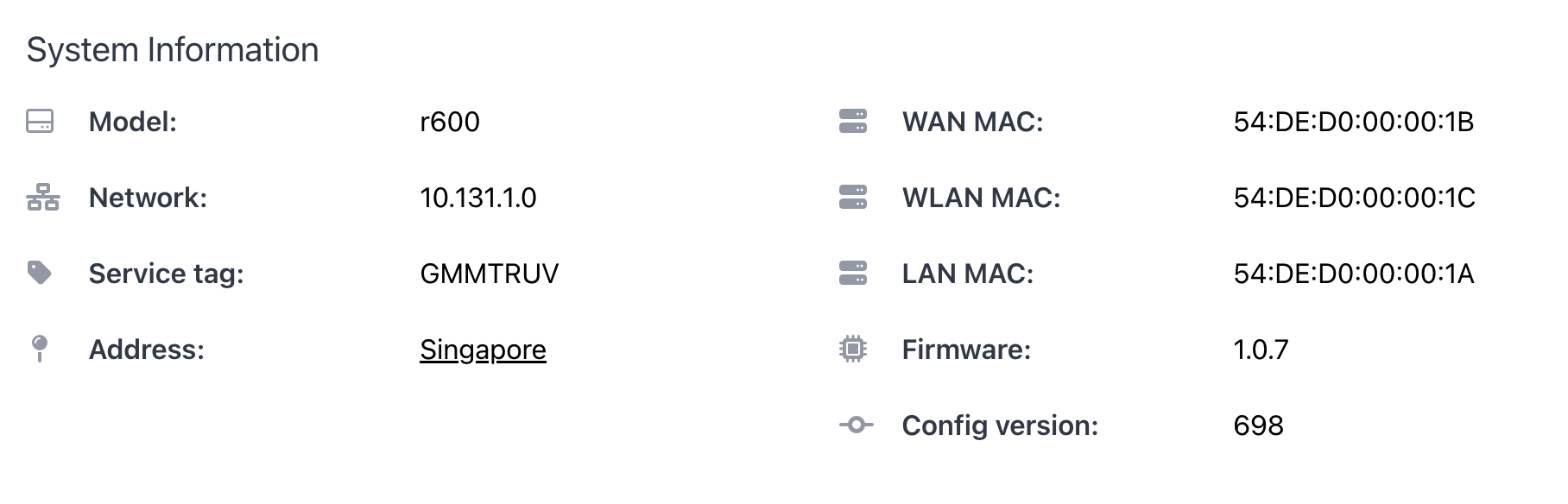

The System Information Panel displays the Router's characteristic data.
| Status | Indicates the Sevio Router's status. Green - online (connected and reachable remotely) or red - offline (disconnected or unreachable remotely). | |
| Name | The name of the plant assigned by the Operator. | |
| Model | Identifies the specific Router model. | |
| Network | A unique network pre-assigned to the Sevio Router, used to reach remote Devices connected to the LAN. It might be unavailable (—) if the Device is unreachable and awaiting an update. For further details, please refer to the VPN Realm article. | |
| Service tag | A 7-digit alphanumeric code that uniquely identifies the Device, making it easier to recognize the Router during support operations. | |
| Address | Location of the Router assigned by the Operator. Setting the address parameter allows the Sevio infrastructure to determine the nearest hub to the installation site, optimizing performance. | |
| WAN MAC | MAC address of the WAN interface, network of the installation site. | |
| WLAN MAC | MAC address of the Wi-Fi interface. | |
| LAN MAC | MAC address of the LAN interface, automation network. | |
| Firmware | Current version of Firmware. For further details, please refer to the Sevio R600 and R200 Releases article. | |
| Config. version | Configuration version number of the Router. |
| Status | Indicates the Sevio Router's status. Green - online (connected and reachable remotely) or red - offline (disconnected or unreachable remotely). | |
| Name | The name of the plant assigned by the Operator. | |
| Model | Identifies the specific Router model. | |
| Network | A unique network pre-assigned to the Sevio Router, used to reach remote Devices connected to the LAN. It might be unavailable (—) if the Device is unreachable and awaiting an update. For further details, please refer to the VPN Realm article. | |
| Service tag | A 7-digit alphanumeric code that uniquely identifies the Device, making it easier to recognize the Router during support operations. | |
| Address | Location of the Router assigned by the Operator. Setting the address parameter allows the Sevio infrastructure to determine the nearest hub to the installation site, optimizing performance. | |
| WAN MAC | MAC address of the WAN interface, network of the installation site. | |
| WLAN MAC | MAC address of the Wi-Fi interface. | |
| Firmware | Current version of Firmware. For further details, please refer to the Sevio Basic and One Releases article. | |
| Config. version | Configuration version number of the Router. |
