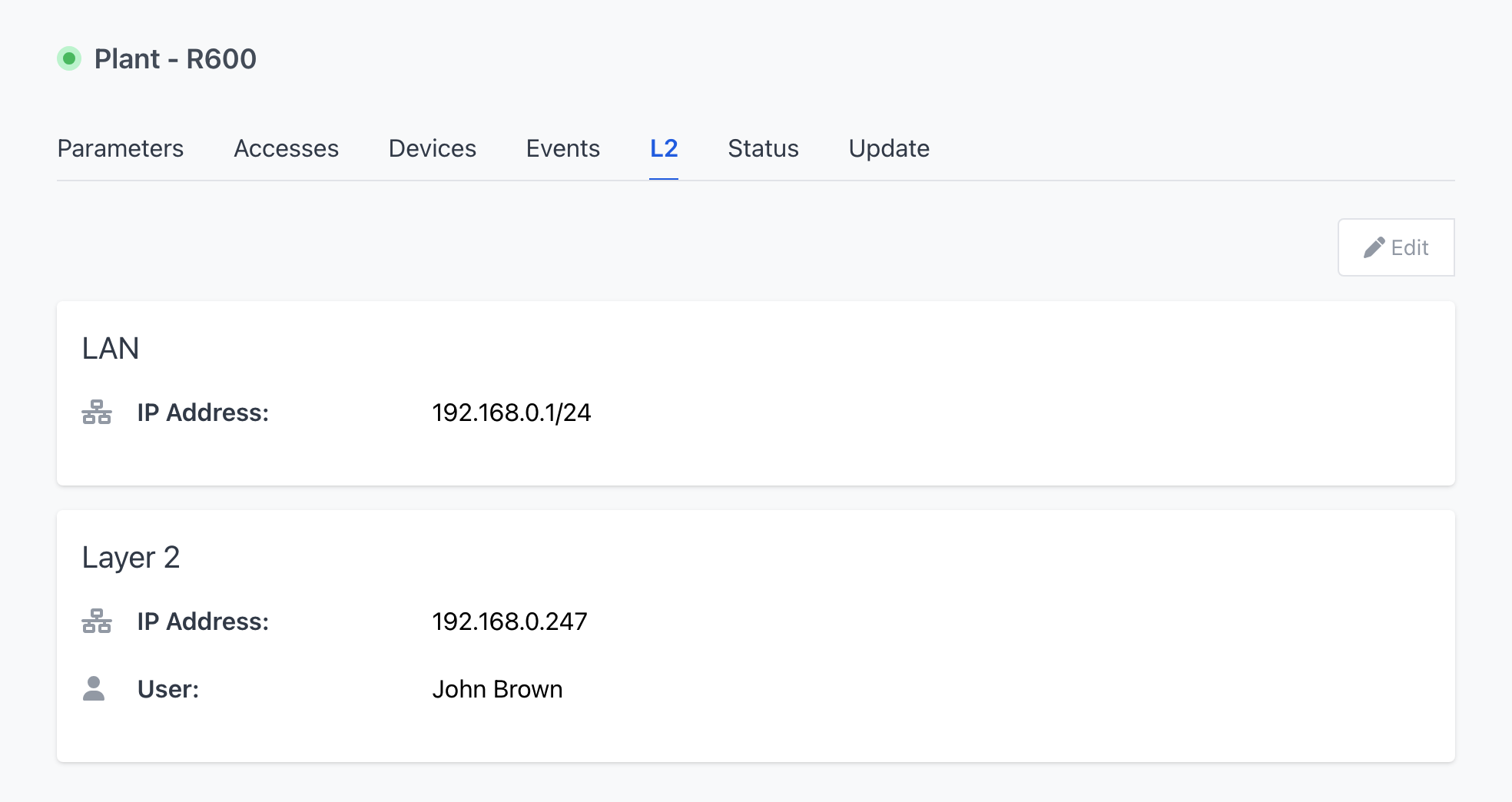

The L2 Submenu in Sevio Portal provides information about Layer 2 sessions via L2 VPN.

This feature is available for R Series Routers.


LAN

The LAN Panel displays the current IP address assigned to the LAN interface.

Knowing the LAN IP address is important because the L2 parameter requires different configurations.


Layer 2

This Panel shows the IP address assigned to the remote Workstation during the Layer 2 connection.
You can use this Panel to modify and reserve an available IP address for your L2 connection.

Ensure that the chosen IP address is not already in use by any other Device on the LAN.

The Panel also displays the identity of the user currently connected via Layer 2. Only one Operator can have an active Layer 2 connection to a specific plant at a time.

For further details, please refer to the Layer 2 VPN article.
